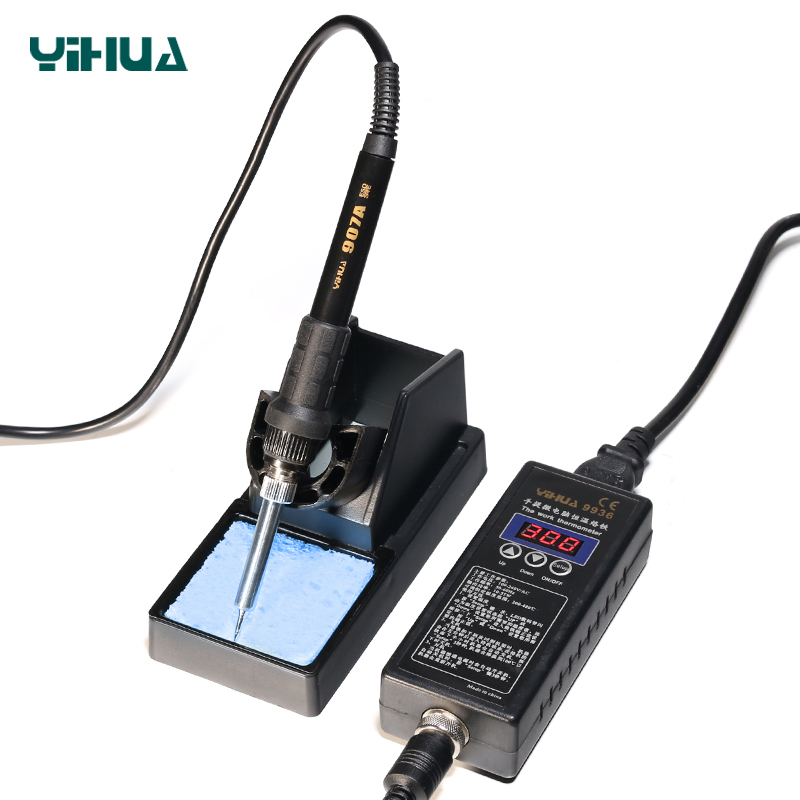

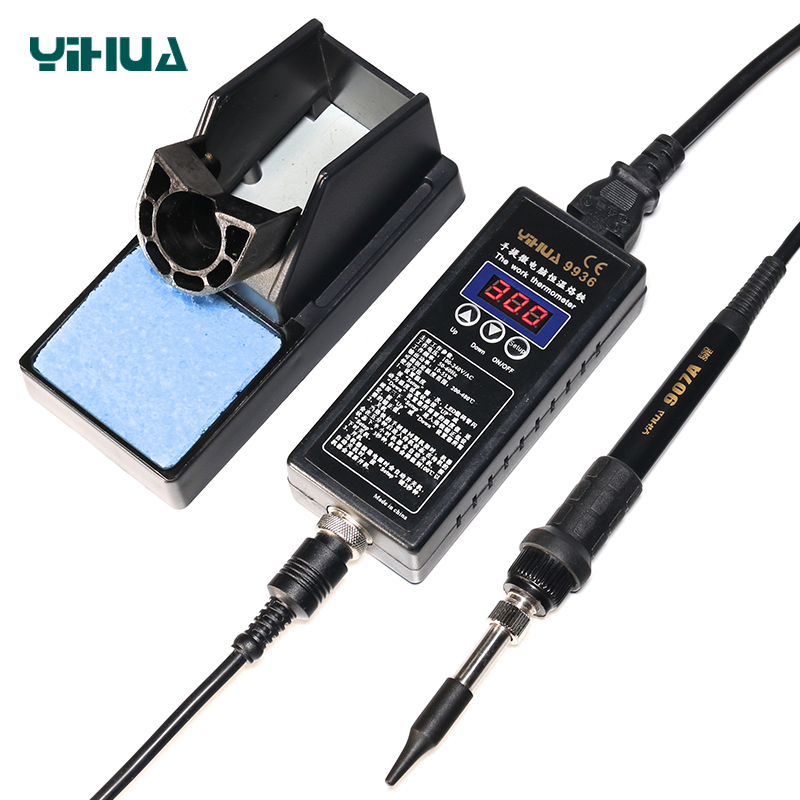

YIHUA 9936 portable mini constant adjustable temperature controlled digital soldering iron station

No.9936

It applies integrated design with high-efficient switching power supply and power control system. Controlled by the SAMSUNG microcomputer PID, it allows for fast warming. Only 15 seconds are required for the temperature rising from 30℃ to 300℃.

Wholesale Enquiry

SPECIFICATION

1.With the portable design, YIHUA-9936 portable soldering station weighs 500g or so, and is small in size. It is conveniently to take and operate.
2.It applies integrated design with high-efficient switching power supply and power control system. Controlled by the SAMSUNG microcomputer PID, it allows for fast warming. Only 15 seconds are required for the temperature rising from 30℃ to 300℃.
3.Both temperature and standby time are adjustable through the NC control. This equipment can real-time display the actual temperature.
4.The intelligent software design allows for automatic high temperature alarming, and automatic fault detection.
5.The YIHUA-9936 portable soldering station has a wide application range. It is suitable for the world-wide use. No power adapter is needed.

Model number	9936
Rated voltage range	100--240V/AC.50/60Hz
Rated power	30W
Temperature range	200-480℃/392-896℉
Display	LED Nixie tube
Tip to ground resistance	＜2 ohms
Control unit dimensions	L127 X W54XH32MM±5mm
Operating ambient temperature	0-40℃/32-104℉
Storage temperature	-20-80℃/4-176℉
Storage humidity	35-45%

Standard Configuration

Machine unit : 1set
Soldering iron handle (include iron tips and heater): 1pc
Iron holder: 1pc
Clean sponge: 1pc
Manual: 1pc
Power Plug: 1pc

Applications

YIHUA-9936 portable soldering station is suitable for the de-soldering and maintenance work of chip components, plug-in components, cables, and integrated components of the circuit board, in the electronic products production line, mobile phone repair industry, and precision electronic repair industry.
