Features
1.YIHUA936A-II this model can used for all soldering scenarios, it's special design for used for small work space.
2. The machine have 2 clips ,can clip the baord, then this machine is very convenience.

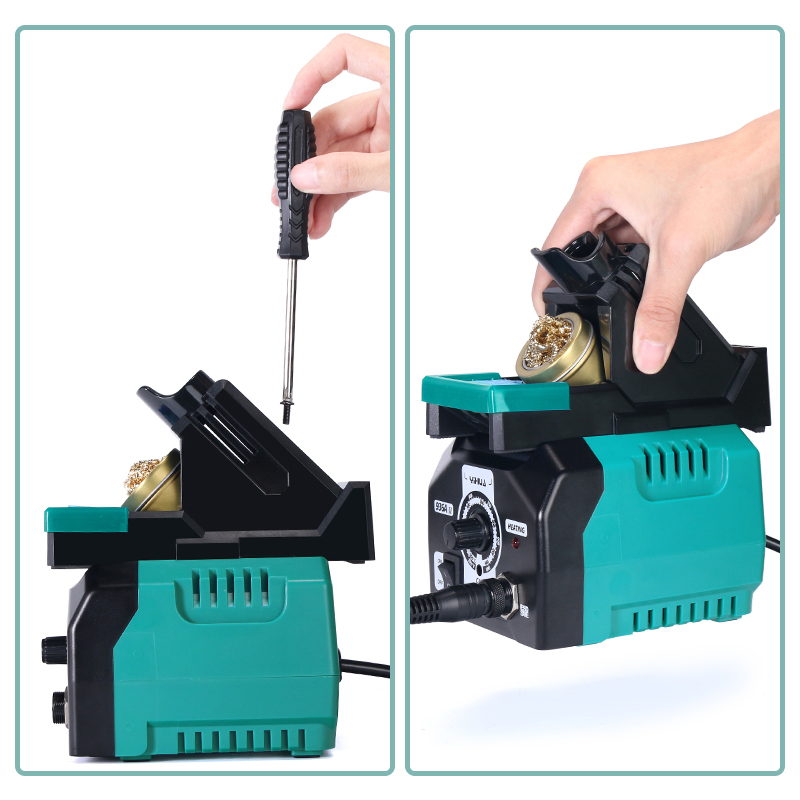

3. The soldering iron holder can fixed the machine case top,can save the work space
4. The soldering iron holder is Bakelite iron holder ,even if over 300 degree on the iron holder,also is no problems,and the iron holder have 08Btips cleaner ,it's very convernience for clean the tips, and the iron holder have solder wire standard on the iron holder back top, this way can save space ,also have 5 holes on the holder ,can used for put soldering iron tips,it's can easy find the things; There is a silicone gasket in the cleaning tank where the cleaning sponge is placed. When the soldering iron tip has tin dross, clean it in the cleaning tank and shake it, it can protect the soldering iron handle inside heater ,not easy to shake broke.
5. The soldering iron handle is new design
6.Soldering iron heater used imported heater,large power is 65W.
7.This product is CE approved.
Parameters
|
Parameters |
|
|
Rated voltage |
AC 220V±10% 50Hz |
|
Power |
34W(MAX:120W) |
|
Working environment |
0~40℃ relative humidity<80% |
|
Storage environment |
-20~80℃ relative humidity<80% |
|
Dimensions |
24.5*19.5*14.2CM |
|
Weight |
2.2KG |
|
Operating Voltage |
AC 26V±10% 50Hz |
|
Temperature range |
200℃~480℃ |
|
Temperature Stability |
±10℃ (Static) |
|
Display type |
NO |
|
Heating elements |
Imported heater |
|
Tip ground impedance |
<2Ω |
|
Tip of ground voltage |
<2mV |
