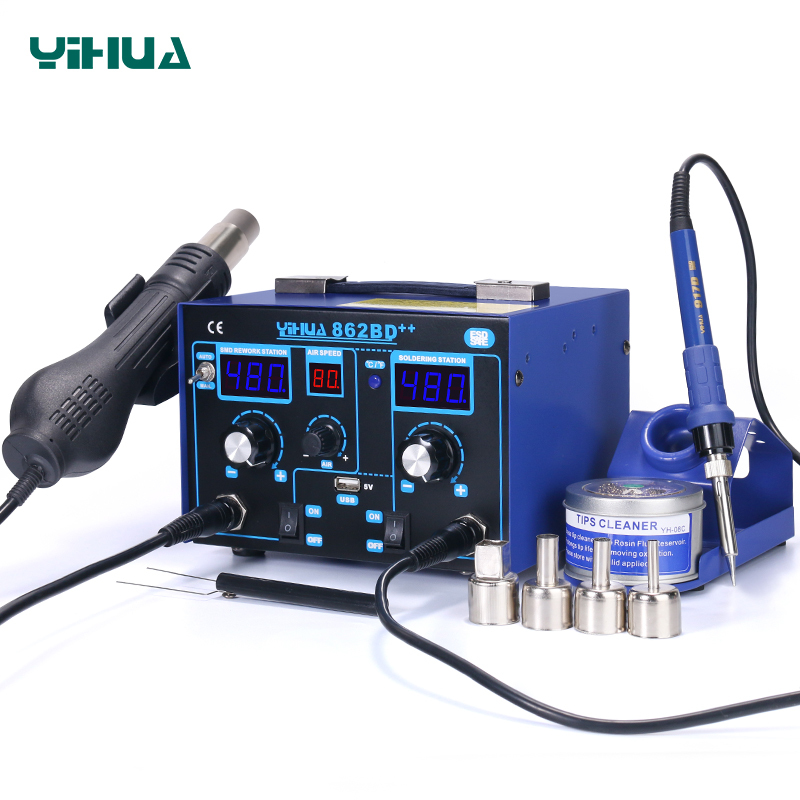

YIHUA 862D+/862BD+/862BD++ 2 in 1 SMD BGA rework soldering station mobile phone laptop repair rework soldering station

SPECIFICATION

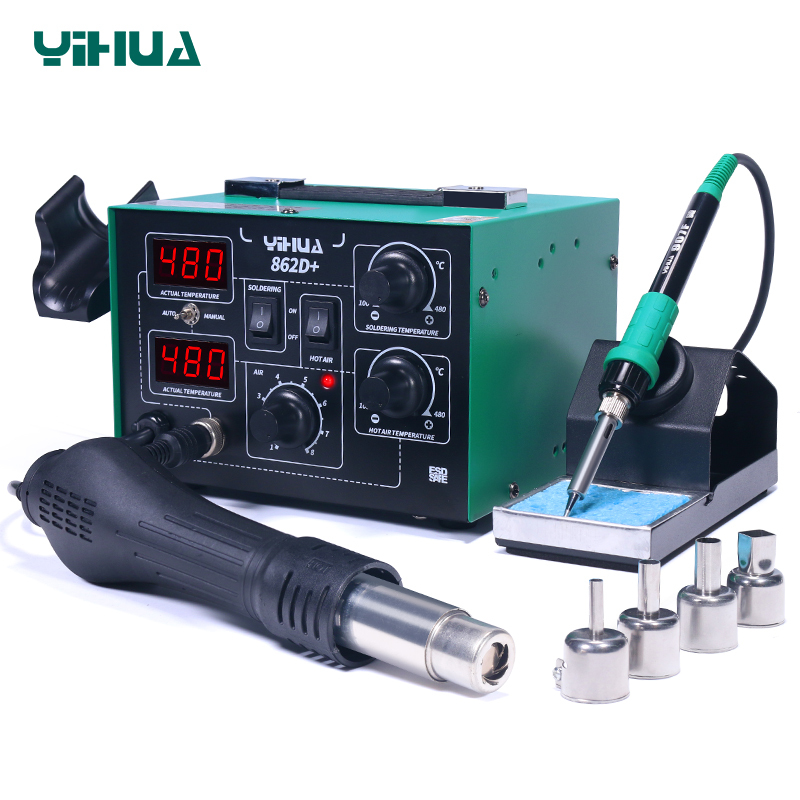

1.Air gun of YIHUA-862D+ SMD hot air rework station with soldering iron has the manual or automatic function, with which it can be set according to the application environment. When the air gun is frequently used, it can be manually adjusted to avoid the repeated heating time, thus improving the working efficiency.

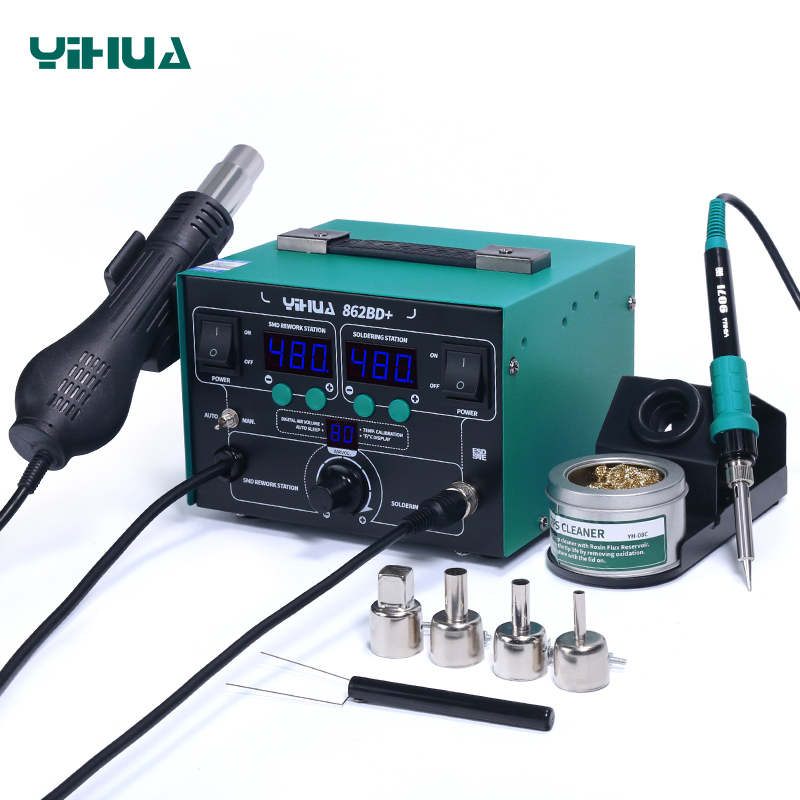

2.YIHUA-862BD+ SMD hot air rework station with soldering iron is equipped with the unique ABS fan which has the antilock function. The fan stops working when facing with the abnormal conditions. Additionally, the system will automatically cut off the air gun power, once the temperature is out of control. Consequently, both safe environment and user’s safety can be guaranteed.
3.It is special in layout design. With the airflow digital display, the airflow can be conveniently adjusted. The adjustable range is from 20 to 80.
4.YIHUA-862BD+ is updated from YIHUA-862D+. It is added with the above new features.

Parameter

Machine
Rated Voltage	AC 220V±10% 50Hz
Machine Power	730W±10% (max.)
The 300 ℃ Isothermal Power (PID controlled energy saving)	250W ±10%
Working Environment	0~40℃ Relative humidity < 80%
Storage Temperature	－20~80℃ Relative humidity < 80%
Machine Size	13.515.718.5cm
Weight	4.5KG
Parts
Item	Hot air gun	Soldering iron
Working Voltage	AC 220V±10% 50Hz	AC 26V±10% 50Hz
Output Power	650W	75W
Temperature Range	100℃~480℃	200℃~480℃
Mode of Airflow	Brushless fan	---
Airflow	120L/min (max)	---
Temperature Stability	±15℃ (static)	±10℃ (static)
Display	LED (red/green)	LED (red/green)
Temperature Correction	PID digital program proofreading	PID digital program proofreading
PID Temperature Cycle	Fast 200ms	Fast 200ms
Heater	Heating core ceramics heater	Imported high-power heater
Tips to Ground Impedance	---	< 2Ω
Tips Voltage to Ground	---	< 2mV

Standard Configuration
Machine: 1 set
Specifications: 1pc
Air Gun Handle: 1pc
Nozzles: 4pcs (10mm, 8mm, 5mm, 13mm)
IC Puller: 1pc
Handle Frame: 1pc
Iron Handle (including a heater and tips): 1pc
Iron Holder: 1pc

Application of Hot Air Rework Station with Soldering Iron
1. Electronic product assembly
2. Product development in scientific research departments
3. Electronic products maintenance
4. Electrical soldering operation
